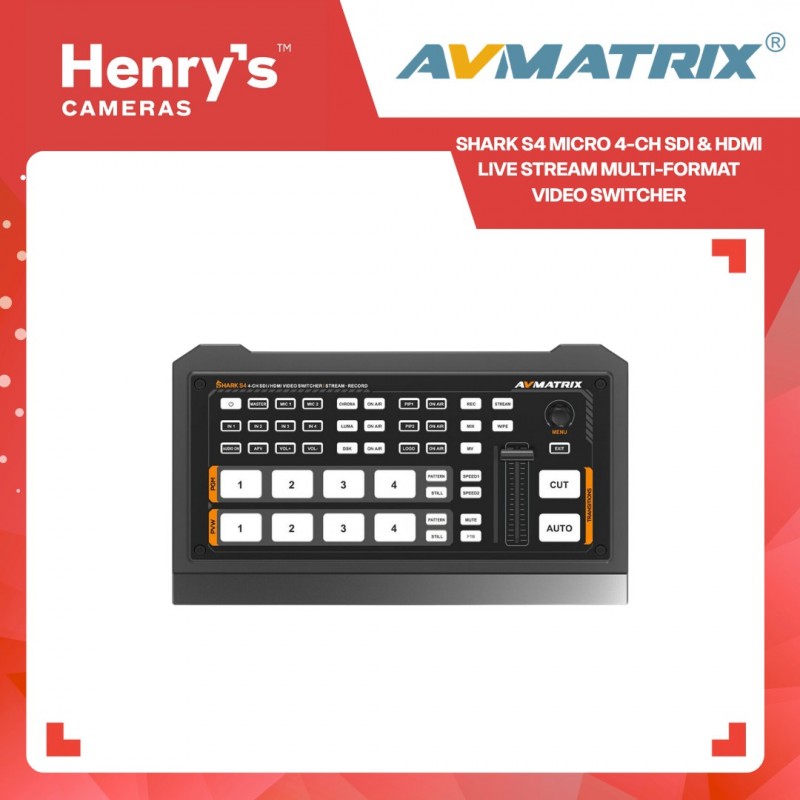

AVMATRIX Shark S4 Micro 4-CH SDI & HDMI Live Stream Multi-Format Video Switcher

AVMatrix

₱29,900.00
Out Of Stock

0% 3mos BDO, BPI, CITI, HSBC ₱9,966.67/mo.

Product Highlights

Compact 4-Channel Video Switcher
2 x 3G-SDI & 2 x HDMI Inputs
1 x HDMI Multiview & 2 x HDMI PGM Out
1 x USB-C Out for Capture & Streaming
Supports up to 1080p60 Video In/Out
1 x LAN for Control Input & Streaming
SD Card/USB-A Recording, 2 x Mic Inputs
T-Bar, Auto & Cut Transitions
Audio Mixing, Multiview Output
Adjustable PiP Size & Positioning

Quantity

Connectivity

Recording Media	1x SD (Unspecified Type)
Wireless	No

Input

Audio Inputs	2x 1/8" / 3.5 mm TRS Stereo Analog Female
Embedded Audio Input	HDMI: 2-Channel, SDI: 2-Channel
Input Audio Format	Analog
Input Video Format	BNC / HDMI, 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps, 1080i at 50/59.94/60 fps
Number of Video Input Sources	4
Video Inputs	2x HDMI Female, 2x BNC (3G-SDI) Female

Inputs / Outputs

Audio Outputs	1x 1/8" / 3.5 mm TRS Stereo Analog Female (Loop Output)
Other I/O	1x RJ45 LAN Input, 1x DE-15/DB-15 Tally Input/Output, 1x USB-A Input

IP Encoding/Decoding

Compatible Services	Facebook Live, Instagram, Livestream, Skype, Twitch, YouTube Live
IP Video	1920 x 1080 Encoding
Simultaneous Streams	1 Streams
Transport Protocols	RTMP, RTMPS, SRT

Output

Embedded Audio Output	HDMI, USB-C
Multiview Output	4-Way Multiview via HDMI
Output Video Format	HDMI, 1080p at 24/25/30/50/60 fps, 1080i at 50/60 fps, USB-C,1080p at 60 fps
Video Output Channels	5
Video Outputs	2x HDMI Female (Program), 1x HDMI Female (Monitor), 1x USB-C (USB Video) Female (Program), 1x USB-A (USB Video) Female (Program)

Power

Power Consumption	Device: 16.8 W
Power I/O	1x Barrel (12 VDC at 1.4 A) Input

Processing

Switching Type

Pushbutton, Software, T-Bar

General

Audio Mixing	2-Channel Mixing
Available M/E Layers	2 M/E
Dimension	9.63 x 5.64 x 1.75" / 24.45 x 14.32 x 4.45 cm
Downstream Keys	1x Chroma, 1x Luma
Effect Types	1x Luma Key
Generators	1x Pattern, 2x Color
Operating Conditions	12 to 92°F / -20 to 60°C
Processor	Not Specified by Manufacturer
Weight	2.2 lb / 1 kg
Warranty	1 Year Warranty

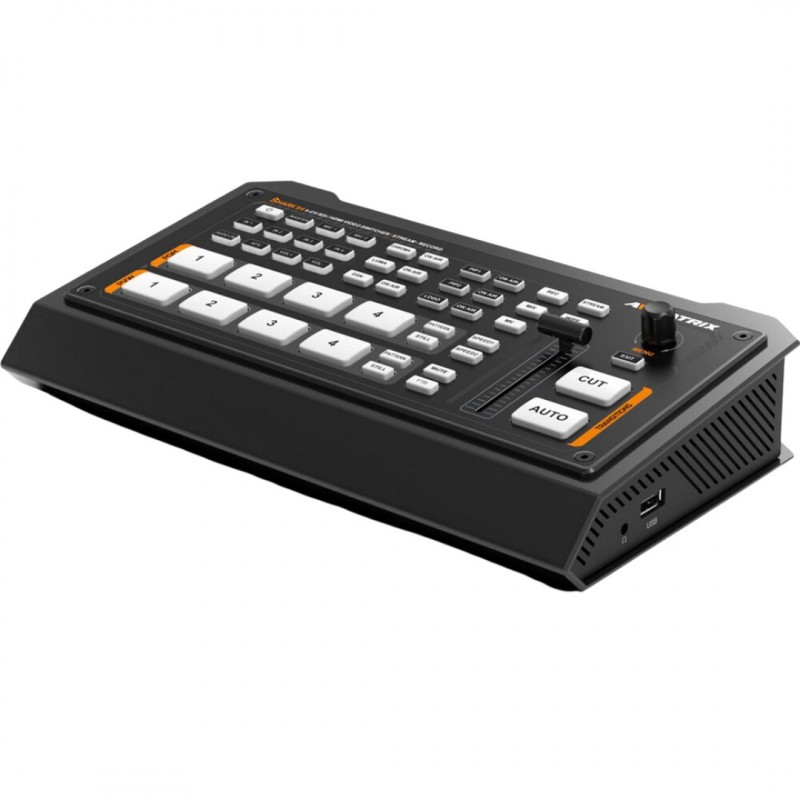

Switch up to two HDMI and two 3G-SDI video inputs while monitoring the program feed with the Shark S4 4-Channel 3G-SDI/HDMI Video Switcher from AVMATRIX. Use the USB-C output together with your computer for capture and streaming. This compact switcher supports up to 1080p60 video input and output with embedded audio and offers audio mixing using the two analog stereo 3.5mm mic/line inputs and output along with the embedded audio. Switcher control options include push buttons, a T-bar, and IP control via the LAN port.

USB Capture & Streaming

Built-in USB-C port can be used to connect the switcher to a computer for USB capture and streaming using software like OBS, Skype, Teams, VLC, Zoom, or vMix.

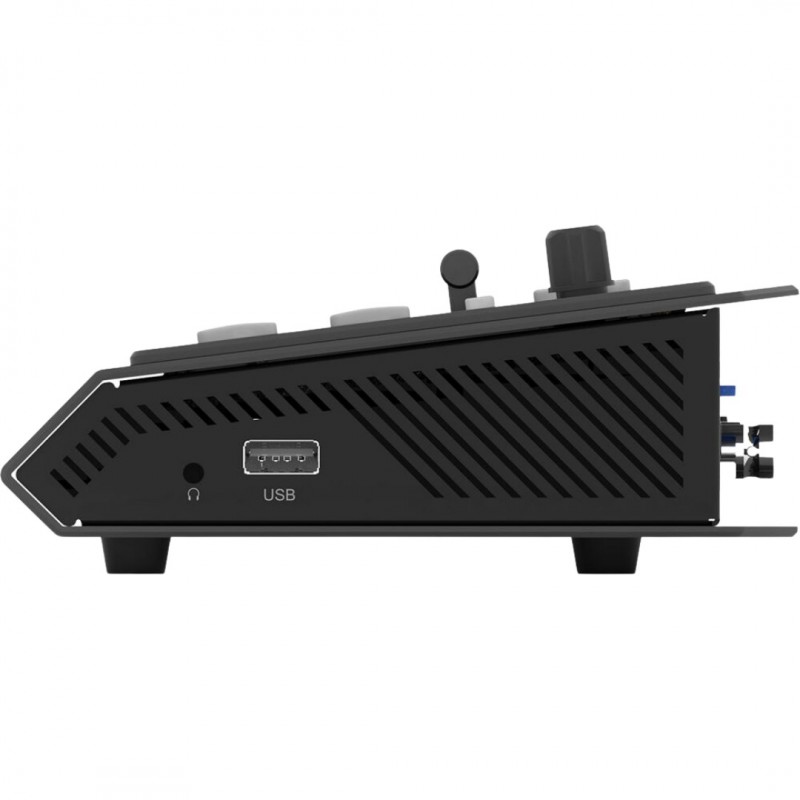

USB and SD Card Recording

Record your program to an SSD or flash drive in MP4 format using the USB-A recording output, or utilize an optional SD card for in the built-in SD card recording slot.

Live Stream via Ethernet

The LAN port supports IP streaming via RTMP or SRT protocols, allowing you to easily live stream to popular platforms such as YouTube, Skype, Facebook, Twitch, and more.

Software Remote Control

Offers easy control of all settings and operations through the control software, including transitions, audio configurations, media management, and more.

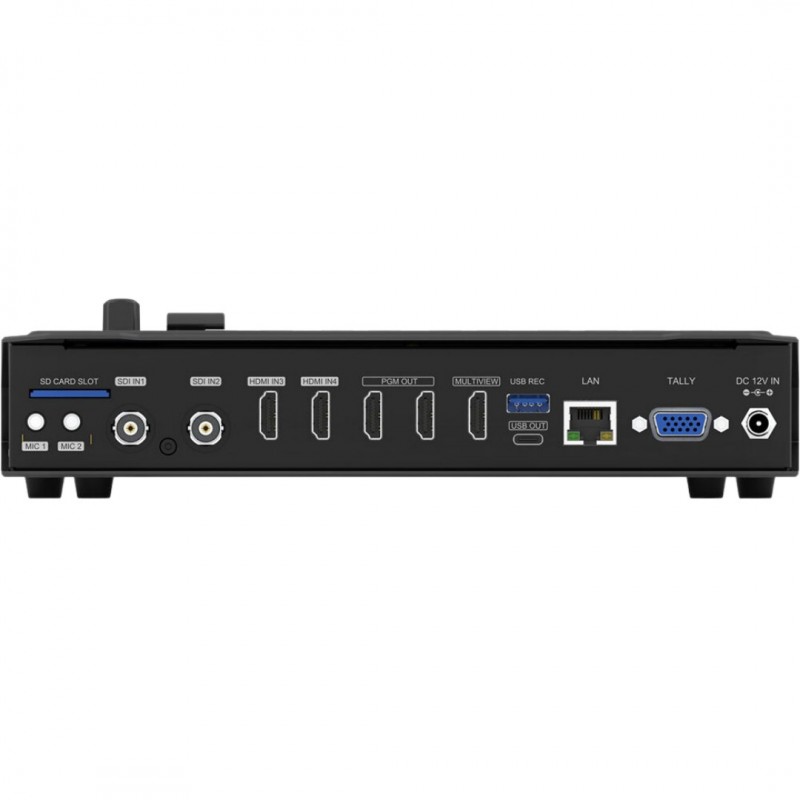

Multiple Interfaces

Multiple interfaces include two 3G-SDI inputs, two HDMI inputs, Program outputs, multiview output, audio inputs, streaming, and recording ports. The outputs can all be configured to pass input, preview, program, clean program, and color bars.
