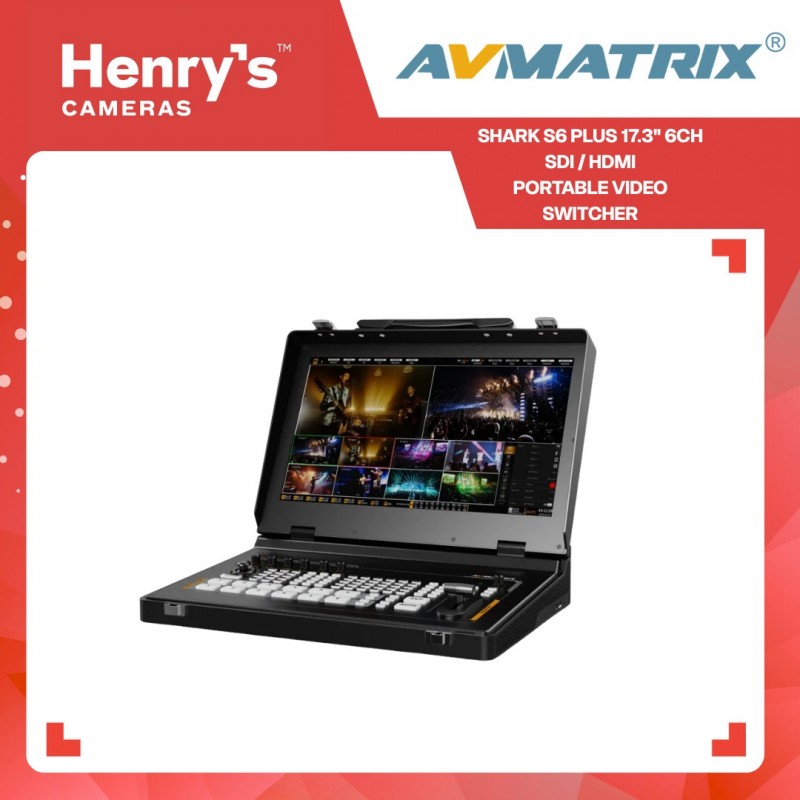

AVMATRIX Shark S6 Plus 17.3" 6CH SDI / HDMI Portable Video Switcher
AVMatrix
-
₱74,500.00
-
Out Of Stock
- 0% 3mos BDO, BPI, CITI, HSBC ₱24,833.33/mo.
Product Highlights
- 4× SDI program outputs
- 2× HDMI program outputs
- 1× HDMI multiview output
- USB-C output (webcam/streaming)
- Large Full HD IPS screen for monitoring all sources
- Customizable multiview layout and source routing
- Supports RTMP (and other protocols like SRT/RTSP) for direct streaming
- Record directly to USB drive or SD card
- USB-C output works as a webcam for OBS, Zoom, etc.
- Chroma key & luma key (green screen support)
- Picture-in-Picture (PiP) with customizable layouts
- Embedded audio from video inputs
- XLR/TRS balanced inputs (with 48V phantom power)
- 3.5mm stereo input/output
Quantity
Accessories
| Effect | Picture-in-Picture (PiP), Logo overlay / DSK |
| Operating Temp | -20°C to 50°C |
Environment
| Storage Temperature | -30°C to 70°C |
Input
| Video Inputs | 4× 3G-SDI (BNC), 2× HDMI (up to 4K60) |
Output
| Video Outputs | 4× SDI program outputs, 2× HDMI program outputs, 1× HDMI multiview output, 1× USB-C (webcam / streaming) |
Power
| Power Consumption | ~50W |
Processing
| Encoding | Up to 1080p60 (H.264), Bitrate up to ~32 Mbps |
General
| Dimension | 440 × 281.5 × 65.1 mm |
| Resolutions | 1920 × 1080 (Full HD) |
| Weight | 3.68 kg |
| Warranty | 1 Year |
The Shark S6 Plus is a professional 6-channel video switcher that supports both SDI and HDMI sources, making it flexible for broadcast cameras, DSLRs, and other video inputs. It features a large Full HD IPS screen for real-time multiview monitoring and offers advanced production tools like transitions, chroma keying, PTZ control, and direct streaming.
It is built for portable live production, allowing users to manage multiple cameras, mix audio, add graphics, and stream or record—all without needing a separate computer.
