Exposure Control



                    | Exposure Control |
                    Four Thirds TTL |


                    | Flash Compensation |
                    -5 to +5 EV (1/3 EV Steps) |


                    | Flash Modes |
                    Hi-Speed Sync |


                    | Power Range |
                    1/1 to 1/128 |




              Flash



                    | Secondary Illumination |
                    Video Light |


                    | Bounce Head |
                    -7 to +90° |


                    | Swivel Head |
                    180° |


                    | Coverage |
                    Micro Four Thirds: 12 to 100 mm, 7 mm (with Wide-Angle Adapter) |


                    | Recycle Time |
                    Approx. 1.7 to 2.7 Seconds |


                    | Flash Duration |
                    1/250 to 1/20000 Second |


                    | Wireless Channels/Groups |
                    4 |




              Power



                    | Internal Power |
                    4x AA Alkaline/NiMH |




              Remote/Trigger



                    | Wireless Operation |
                    Radio (TTL/Manual): Unspecified Range |




              General



                    | Dimension |
                    2.8 x 4.4 x 4.4" / 72 x 112.5 x 112.5 mm |


                    | Mount |
                    Shoe |


                    | Weight |
                    12 oz / 340.2 g (without Batteries) |

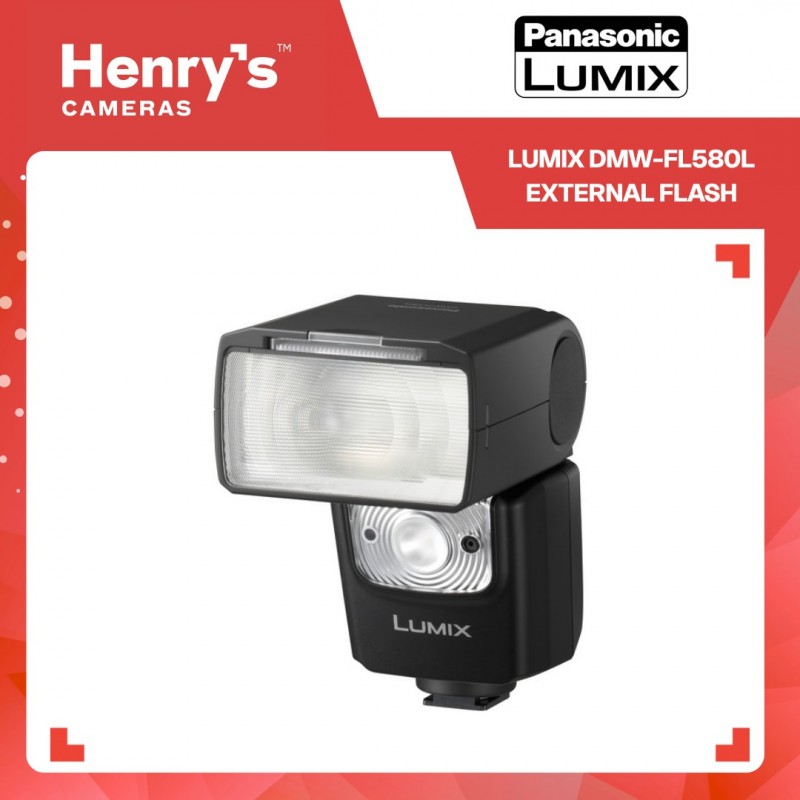

                    Illuminate your stills and video with the LUMIX DMW-FL580L External Flash from Panasonic which features an LED light and TTL compatibility. Capable of covering a zoom range of 12-100mm on Micro Four Thirds cameras, and down to 7mm with the built-in panel, this versatile unit is also powerful with a guide number of 190' at ISO 100 and 100mm. The flash head itself offers tilting from -7 to +90° and rotation left and right 180° for full bounce capabilities. Along with these features, the flash also has wireless master and slave TTL functionality with access to 4 channels and 3 groups.
With video now common on digital cameras, the DMW-FL580L flash includes an LED light with 100 lux output at 3.3'. This light also functions as an AF assist during stills shooting. The flash is even capable of high-speed sync and it has a recycle time of 1.7 to 2.7 seconds. Additionally, it runs on 4 AA batteries and comes with an IR filter, diffuser, orange warming filter, a stand, and a case.
- Equivalent coverage on 35mm format is 24-100mm, and 14mm with the wide-angle panel
 - Approximately 125 flashes with alkaline batteries and 175 with Ni-MH batteries
 - Multi flash mode for continuous flash firing
 - LED light has effective range of 3.3-16.4'
 - LED light will run for 170 minutes with alkaline batteries or 240 minutes with Ni-MH batteries
 - Built-in bounce card for creating catchlights
