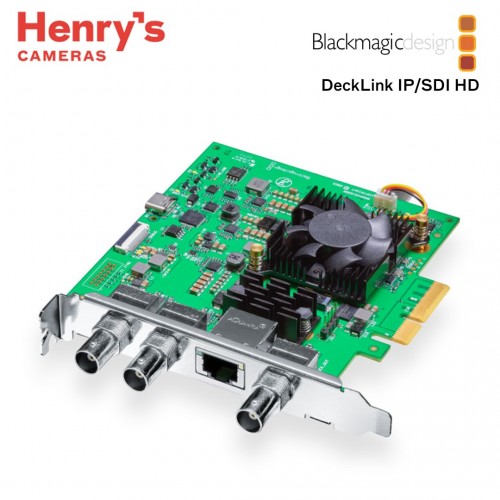

Blackmagic Design DeckLink IP/SDI HD

Blackmagic

₱30,250.00
Out Of Stock

This item cannot be check out. For availability, inquiries and interested buyers, kindly chat us on our FB messenger Henry's Cameras PH or send us an email at sales@henryscameraphoto.com.

DeckLink IP/SDI HD

0% 3mos BDO, BPI, CITI, HSBC ₱10,083.33/mo.

Product Highlights

PCIe Playback & Monitoring Card
Ideal for 2110 IP Broadcast Systems
10-Bit 1080p60 Uncompressed Video
10G Ethernet Port & 2 x 3G-SDI Ports
All Popular Video Software Supported
Compatible with Mac, Windows, and Linux
NMOS Protocol Support
Media Express Software Included

Quantity

Environment

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 113°F / -20 to 45°C

Format Support

Embedded Audio	LAN (RJ45)/SDI: 16-Channel
Input Video Format	RJ45 / SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps RJ45 / SDI (8/10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080PsF at 23.98/24/25/29.97/30 fps
Output Video Format	RJ45 / SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps RJ45 / SDI (8/10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 576i / 625 lines at 50 fps 480i / 525 lines at 59.94 fps SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080PsF at 23.98/24/25/29.97/30 fps

Hardware

OS Compatibility

macOS 12 to 13 or Later Windows 10 (64-Bit Only) Windows 11 Linux

Inputs / Outputs

Inputs/Outputs	2x BNC (3G-SDI) 1x RJ45
Other I/O	1x BNC Reference Output
System Connections	PCIe x4

Power

Power Consumption

10 W

General

Dimension	5.42" / 13.77 cm
Weight	5.6 oz / 159 g
Warranty	1 Year

Connect to both 3G-SDI and 2110 IP systems with DeckLink IP/SDI HD. It has 2 capture and playback channels to 2110 IP via RJ45 Ethernet, 2 direction configurable 3G-SDI connections and reference out. It is designed to work with the highest quality video with support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, and supports 525i, 625i, 720p, 1080i and 1080p video standards up to 1080p60.
