OSEE GoStream Duet SDI Video Mixer & Broadcast Switcher for Live Stream
OSEE
-
₱24,500.00
-
In Stock
- 0% 3mos BDO, BPI, CITI, HSBC ₱8,166.67/mo.
- Supports up to 1080p60 Video
- Four HDMI, Four SDI, One UVC/USB-C Input
- Built-In NDI|HX Streaming
- Two HDMI and One USB-C Output
- Stream to Three Platforms Simultaneously
- Nine Effects Such as Chroma, PIP, DIP
- Two Mic Inputs, Embedded HDMI/SDI Audio
- Record to SD Card Slot or External SSD
- Convert HDMI/SDI Video Sources
- Eight Custom Macro Presets
Input
| Audio Inputs | 2x 1/8" / 3.5 mm TRS Mic |
| Embedded Audio Input | HDMI, SDI, RJ45 |
| Input Audio Format | Analog |
| Input Video Format | HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC) |
| Video Inputs | 4x HDMI Female, 4x BNC (3G-SDI) Female, 1x USB-C (UVC) Female, 1x RJ45 (HX/NDI) Female |
Inputs / Outputs
| Other I/O | 1x RJ45 LAN Input/Output |
Output
| Audio Outputs | 1x 1/8" / 3.5 mm TRS Stereo |
| Embedded Audio Output | HDMI |
| Multiview Output | 9-Way Multiview via HDMI |
| Output Video Format | HDMI (8/12-Bit 4:4:4/4:2:2 RGB, YCC) |
| Video Output Channels | 5 |
| Video Outputs | 2x HDMI, 1x USB-C |
Power
| Power Consumption | 12 VDC (12 W) |
Processing
| Color Processing | 12-Bit 4:2:2 YCbCr, 8-Bit 4:4:4 RGB |
| Switching Type | Pushbutton, Software |
General
| Audio Mixing | 7-Channel Mixing |
| Available M/E Layers | 6 M/E |
| Dimension | 9.9 x 4.2 x 1.9" / 252.4 x 107.3 x 49.3 mm |
| Downstream Keys | 1x Chroma, Luma |
| Effect Types | Transition, Chroma Key, Luma Key |
| Generators | 5x Color, 2x Pattern |
| Operating Conditions | 41 to 104°F / 5 to 40°C |
| Weight | 1.1 lb / 0.5 kg |
| Warranty | 6 months |
| In The Box | 1x GoStream Duet, 1x Power Adaptor |
Streamline Your Livestream Production

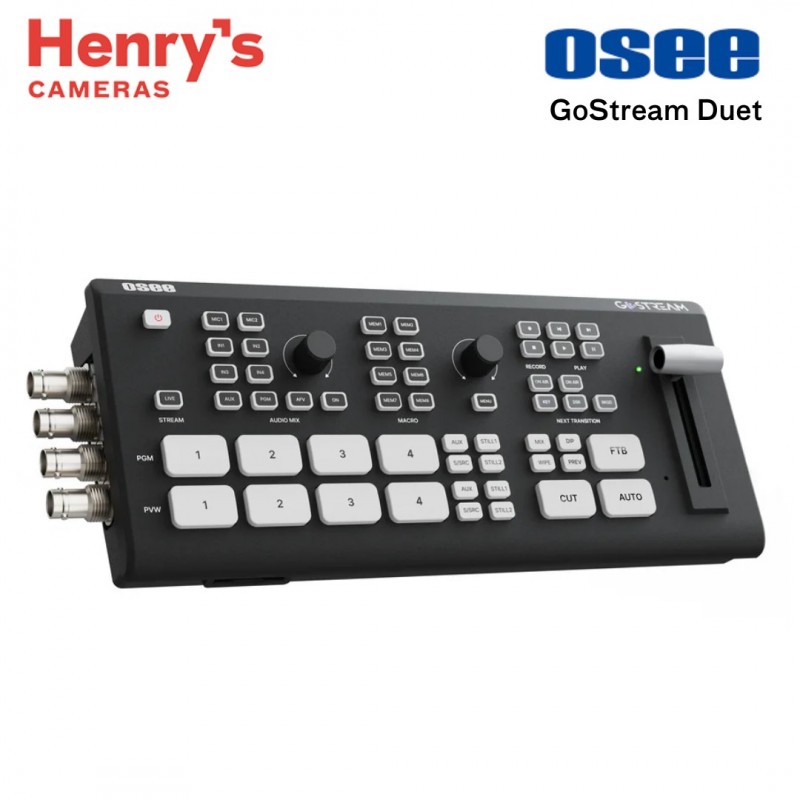

The GoStream Duet features a comprehensive, tactile control panel with numerous buttons, PVW and PGM select buttons, knobs, and a fader. It also features recording to SD card and external USB SSD, which also support the playback function, reducing the number of required devices needed to facilitate your livestream.
Supports Three Simultaneous Streams
Livestream to three different platforms such as YouTube or Twitch simultaneously using the integrated Ethernet port on the GoStream. Connect a USB webcam to the USB-C input and output that feed via OBS, VMix, or Zoom using the USB-C output port.
Output up to Five Channels
Select up to five video input sources from the SD card, SSD, HDMI, SDI, USB, or NDI|HX inputs, such as cameras, streams, switchers, and UVC sources, and output them to a monitor or projector for simultaneous presentation, or connect an optional Stream Deck or built-in WebGUI.
Built-In Audio Mixer
An internal audio mixer supports seven channels of embedded and input audio sources, with audio sources coming from the SDI and HDMI inputs, one from the AUX input, and two from dedicated 3.5mm TRS microphone ports. Mix the inputs into the program output using the On/Off or AFV controls on the switcher and adjust parameters like gain, balance, and fade. Monitor audio from a selected source using the headphone input.
Utilize up to Nine Effects
The GoStream Duet supports nine special effects including Super Source, upstream keyers, downstream keyers, Chroma keyers, transitions, and a still image generator. Craft visually appealing, multi-layered effects tailored to your production. Use the eight Macro Memories to record specific composition functions and set them as custom presets for efficient recall.
